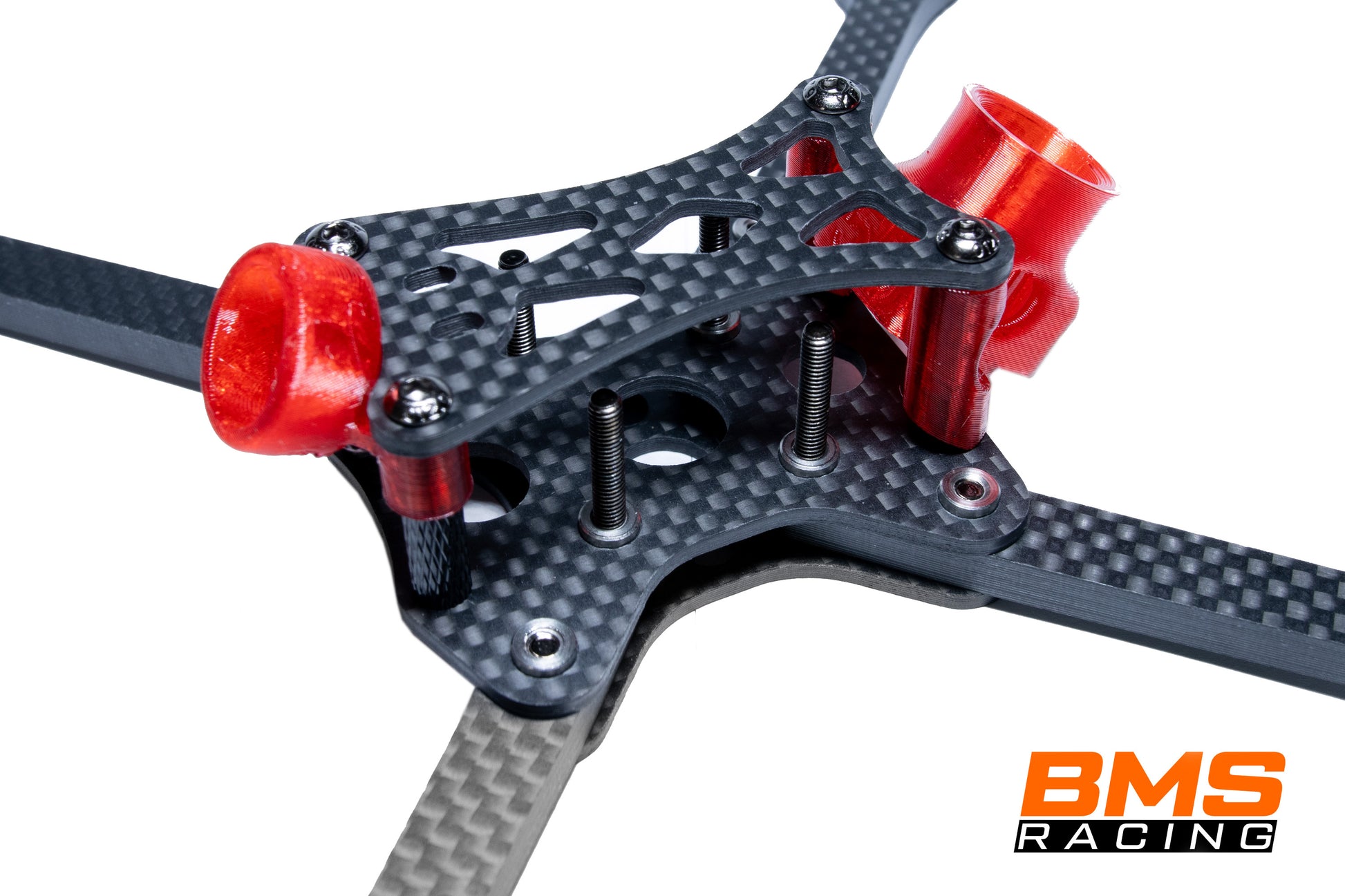

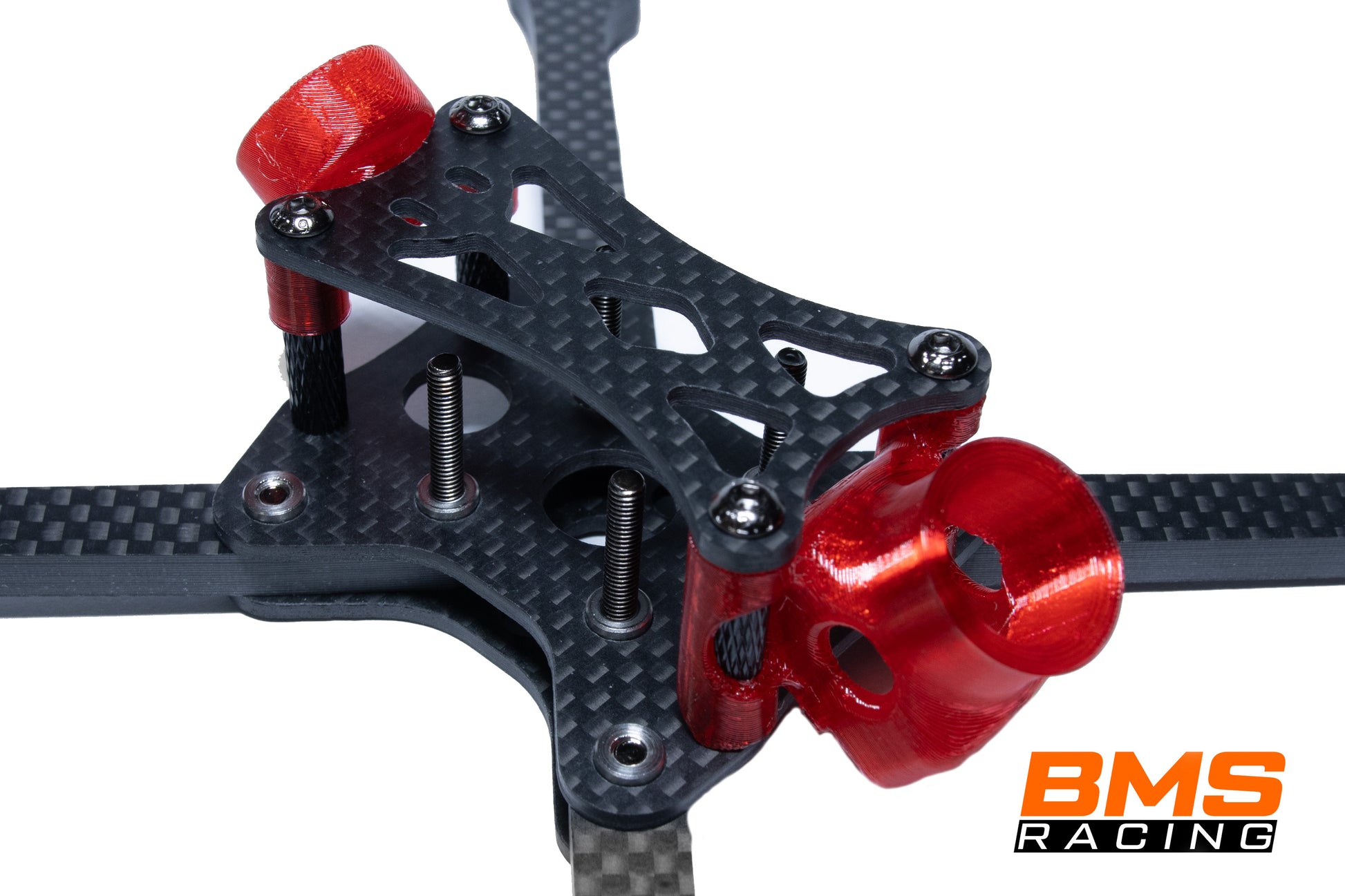

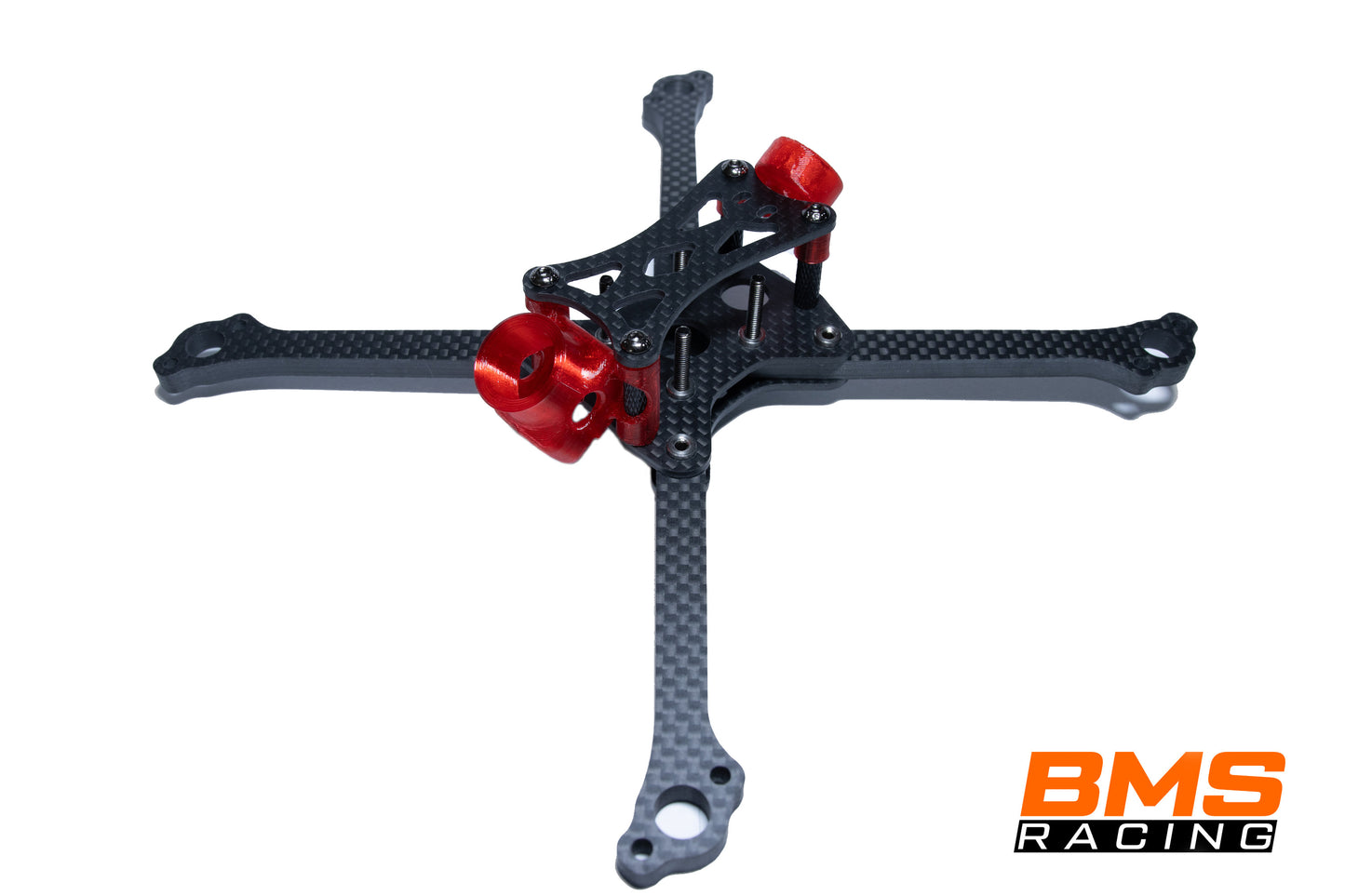

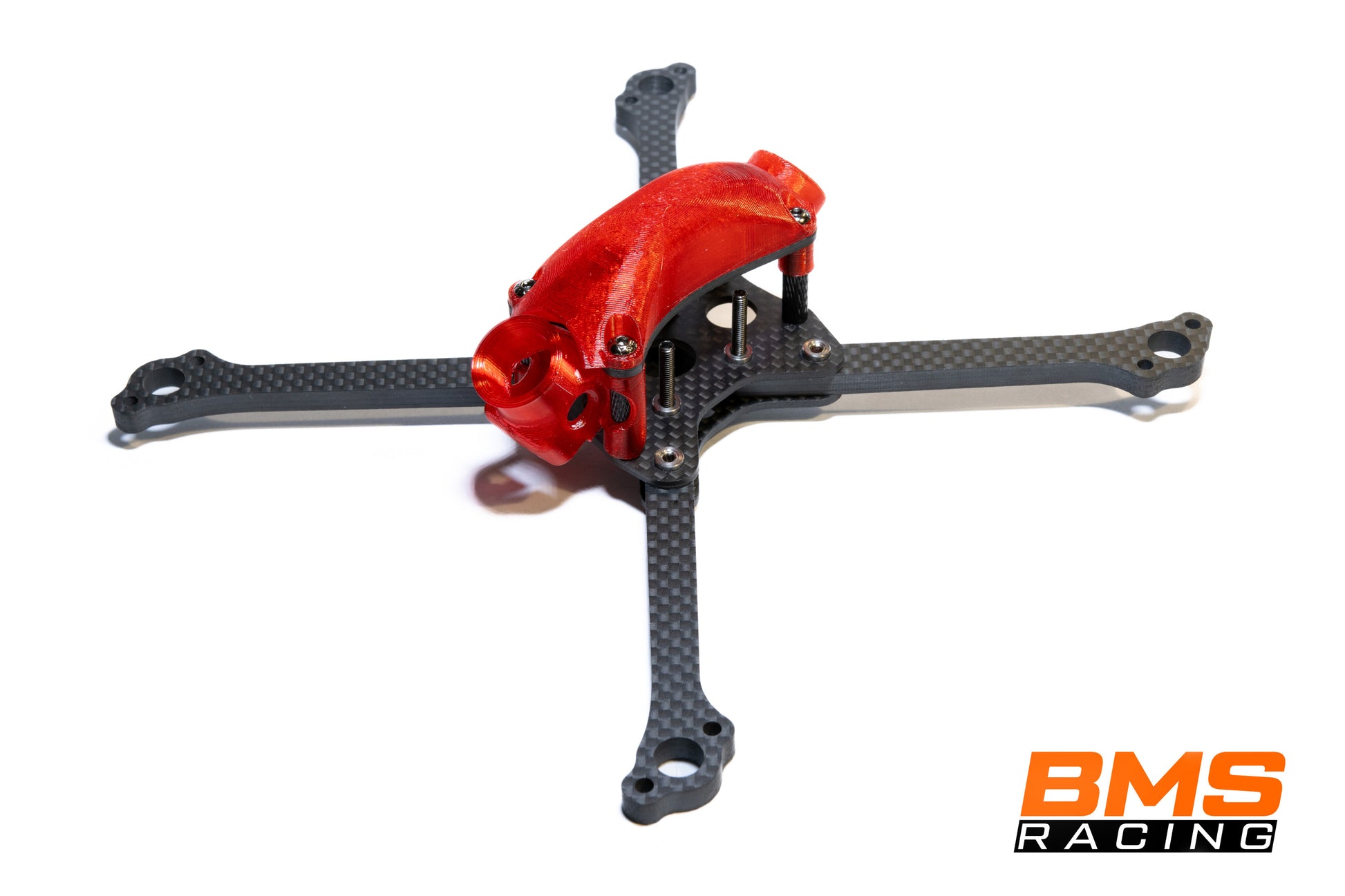

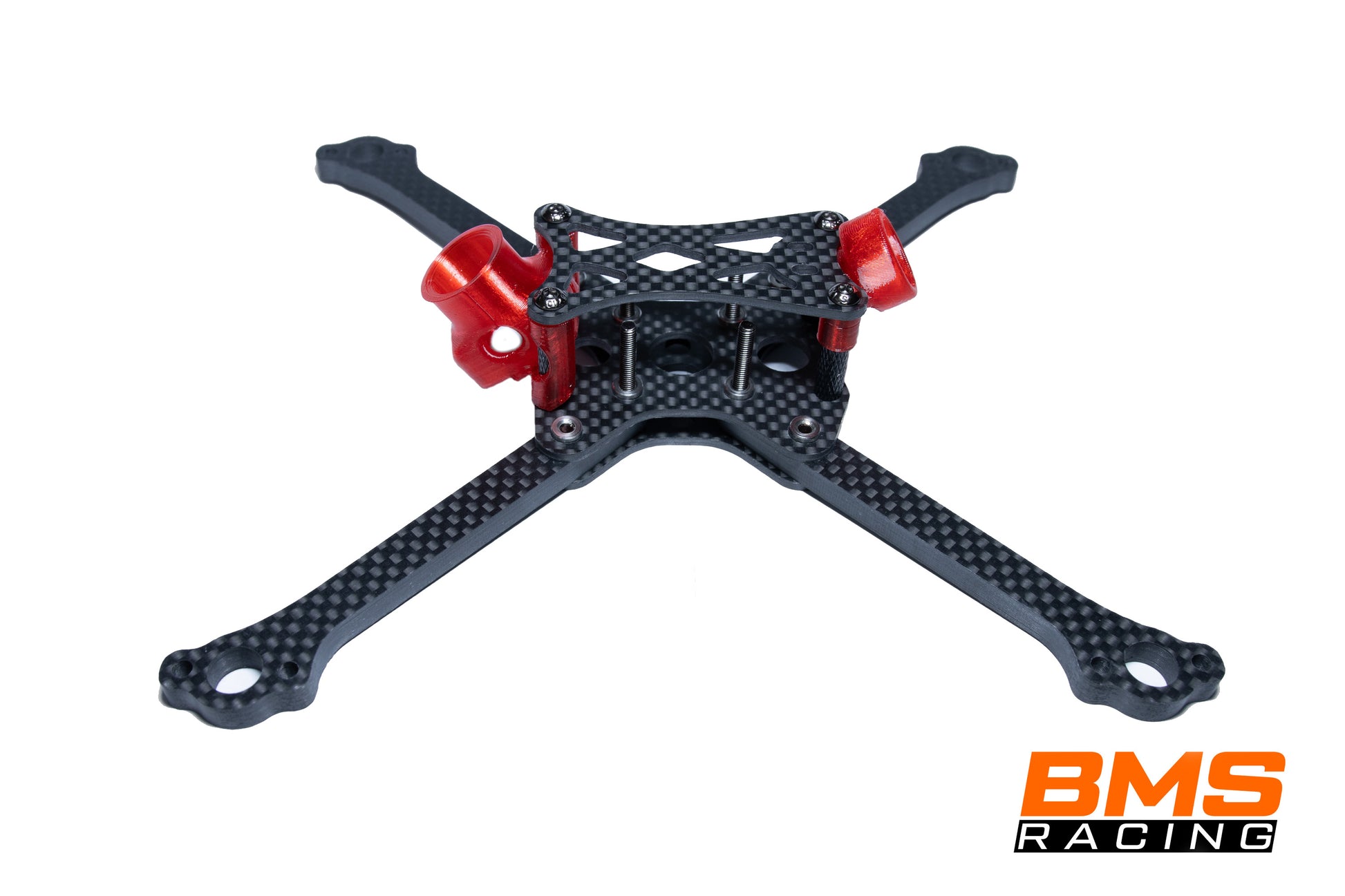

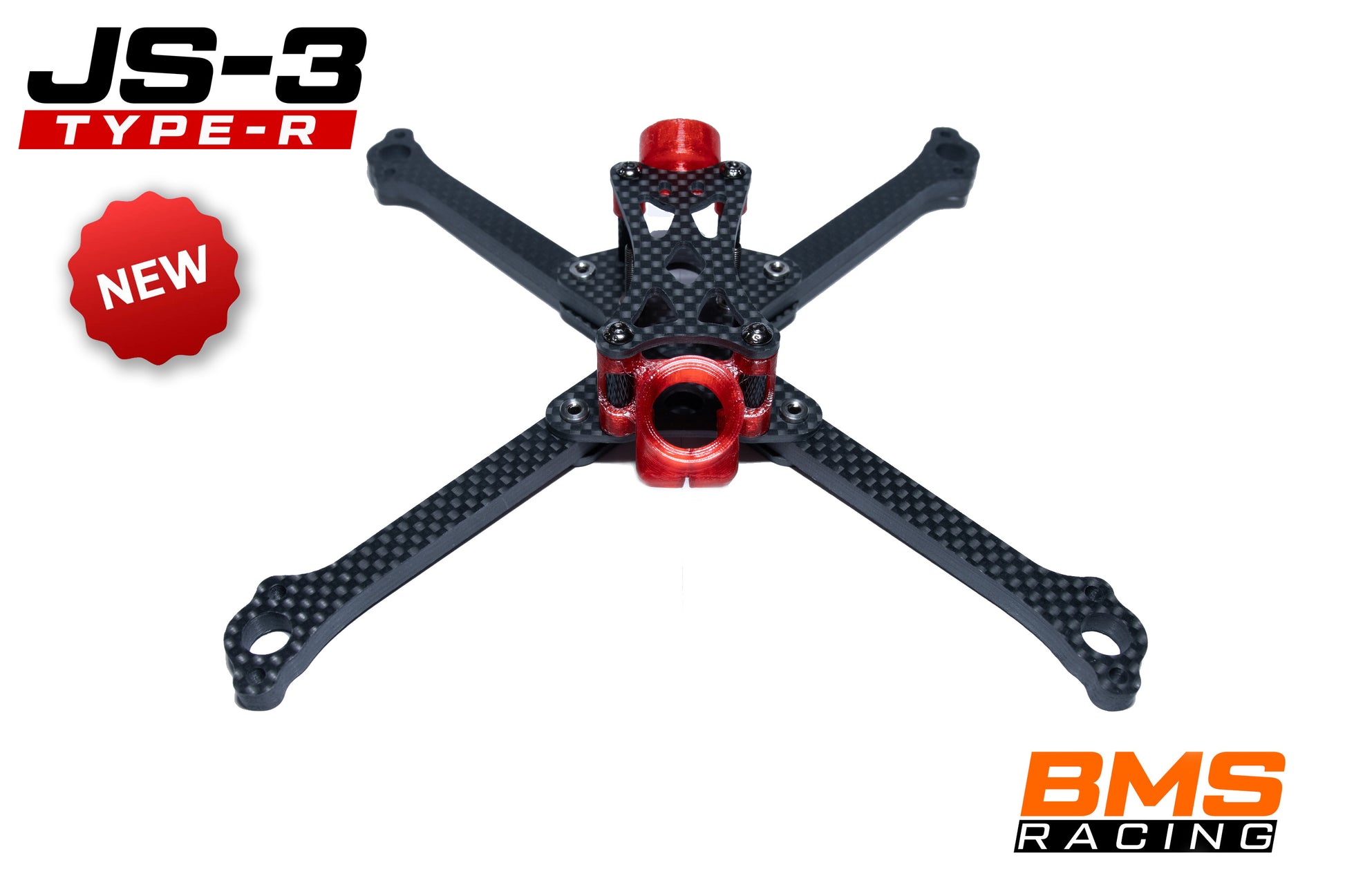

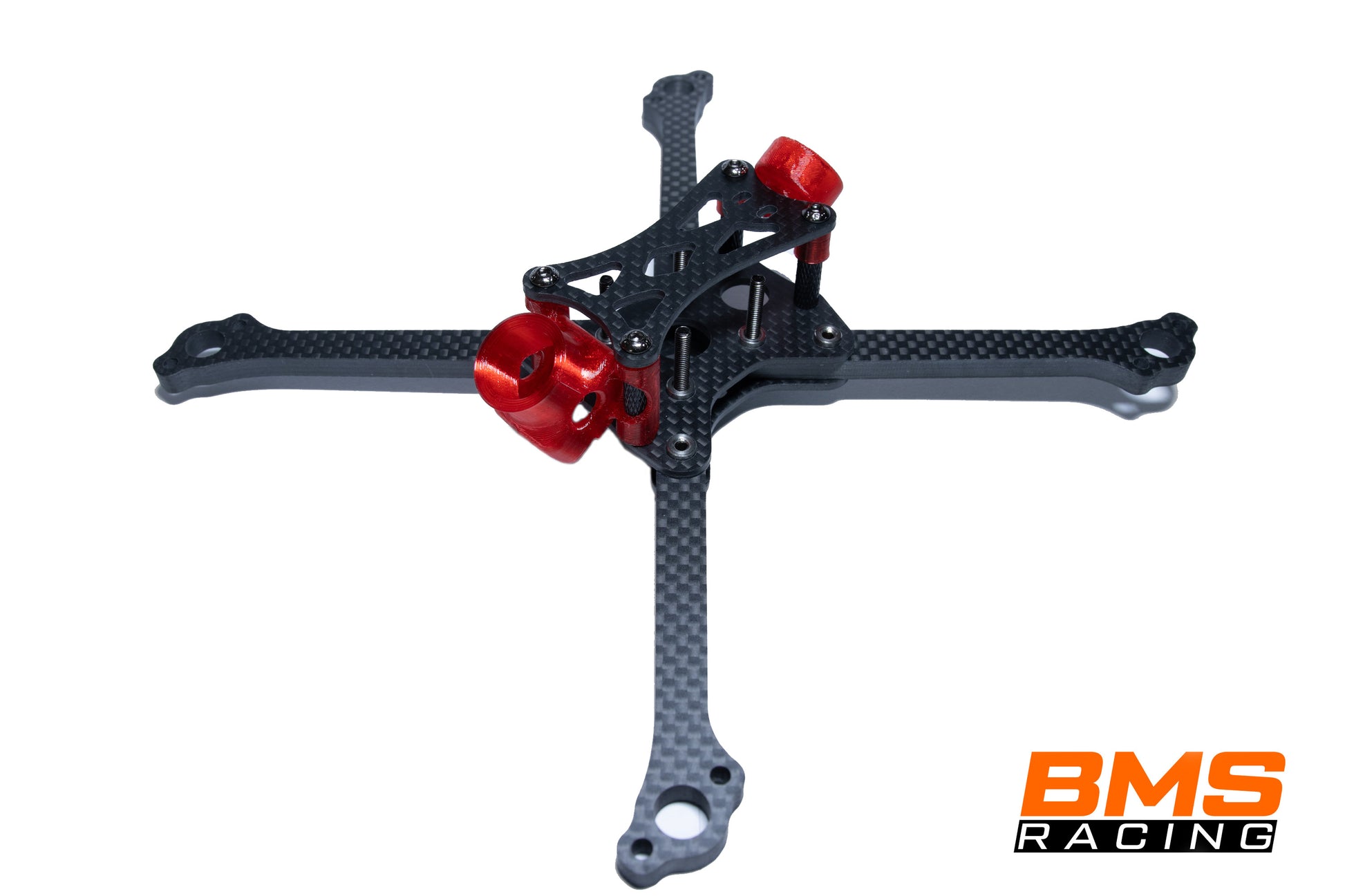

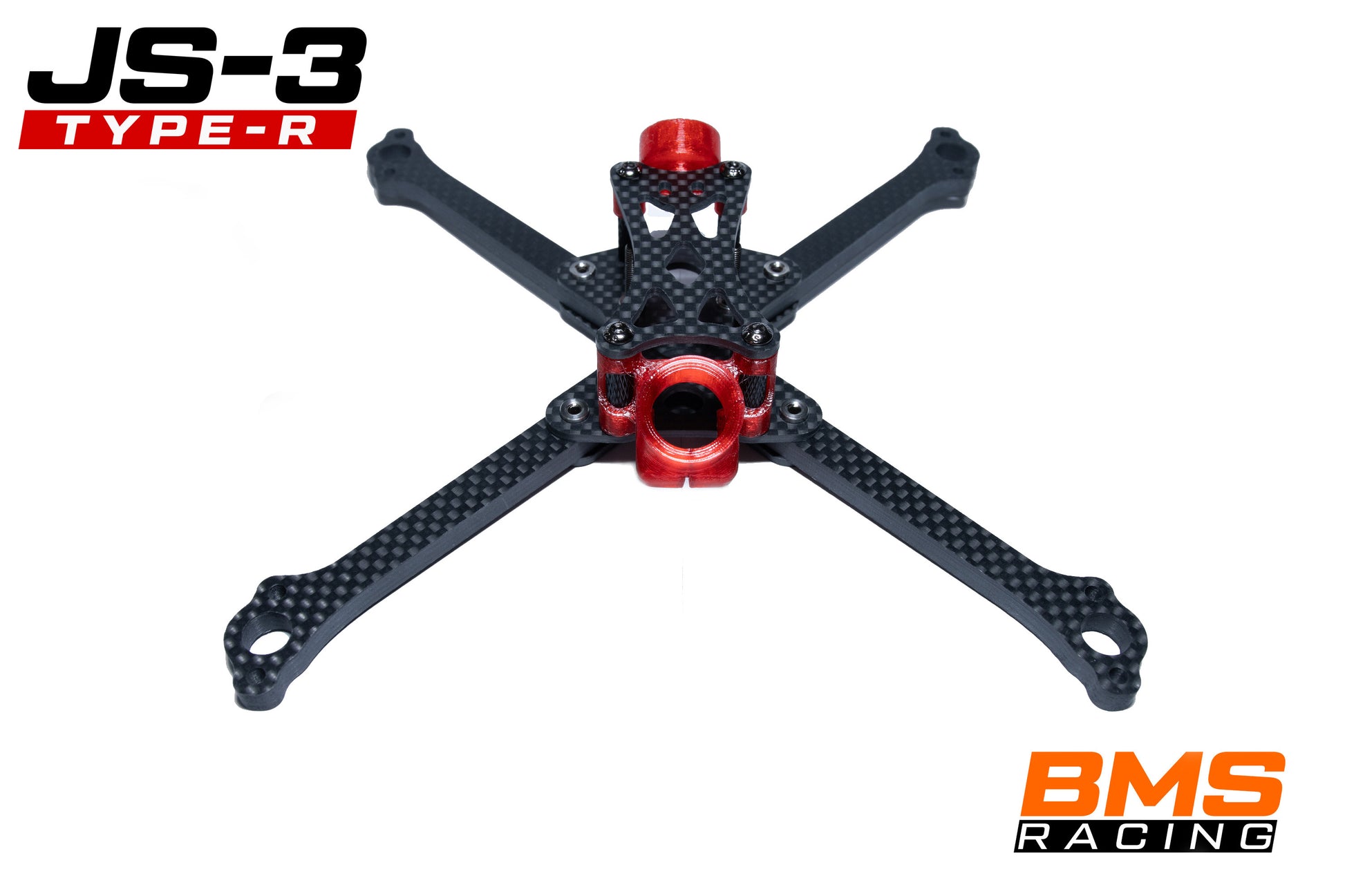

JS-3 Type R - Frame (Carbon & Hardware Only) HDZero Compatible

Note: TPU parts not included. They can be purchased separately in the Spares Section downloaded from Thingiverse or MakerWorld (Download link in description of TPU Parts).

The JS-3 Type R is a ground up redesign of the original JS-3 Tiger, updated as a no holds barred, pure performance racing machine. Feature updates include higher stiffness, better weight distribution, countersunk bolts on the underside of the body to enable the use of velcro or other slim battery friction systems, lower profile body, and an average one gram weight reduction!

This leaves us with superior handling characteristics above ~80% throttle, and improved response and acceleration across the entire throttle range.

Best of all the JS-3 Type R uses the same body bolt pattern as the original JS-3 & THIC, so all parts are interchangeable and cross compatible! (Note: upgrading a standard JS-3 to a THIC or Type-R body also requires the countersunk bolts, Type-R arms don't support Tiger/THIC arm braces)

Note: This is only the carbon & hardware for the frame. For proper assembly, additional TPU parts are required to complete the build. We have printing on demand available, but additionally all the parts are available for printing or purchase

TPU sold through BMS Racing is made for the TBS Triumph Pro U.FL, Foxeer Predator Nano & HDZero Version. If you are using a different antenna, camera or lens, please contact us first to verify compatibility before you make a purchase. We will be producing more mounts & variants as required.

Kit Includes:
Everything needed to build the frame, less the TPU Parts and Electronics.
So Battery Pad, Battery Strap is included in the kit.

Recommended parts list (HDZero):
VTX Antenna: TBS Triumph pro (U.Fl for standard TPU)
VTX: HDZero Race V3 or Foxeer HDZero VTX
Camera: HDZero 90FPS Cam with lens upgrade
FC: Foxeer F7 or H7 FC 20x20 (note if 10v bec required)
ESC: Foxeer Reaper 60A Slim
Propeller: Gemfan 51366 V3, Gemfan 5127, Gemfan 51466 V2 or HQProp BMS
Motor: T-Motor BMS Raptor V2, T-Motor F50 2150KV, VCI 2207 2100KV
Battery: Tattu R-Line V5 1400, 1550
RX: TBS Tracer, TBS Crossfire or Radiomaster ELRS

Recommended parts list (Analog):
VTX Antenna: TBS Triumph pro (U.Fl for standard TPU)
VTX: TBS Unify Pro (32 nano or nano)
Camera: Predator nano
FC: Foxeer F7 or H7 FC 20x20
ESC: Foxeer Reaper 60A Slim
Propeller: Gemfan 51366 V3, Gemfan 5127, Gemfan 51466 V2 or HQProp BMS
Motor: T-Motor BMS Raptor V2, T-Motor F50 2150KV, VCI 2207 2100KV
Battery: Tattu R-Line V5 1400, 1550
RX: TBS Tracer, TBS Crossfire or Radiomaster ELRS

Tune will be available as a preset soon, but for now just contact Thomas Bitmatta (@bmsthomas_ on instagram)

JS-3 Type R Build Diagram
