JS-3 THIC - Frame - PROTOTYPE V1

JS-3 THIC - Frame - PROTOTYPE V1

$34.99 AUD
$84.99 AUD $34.99 AUD
Sale Sold out
We currently have 3 in stock

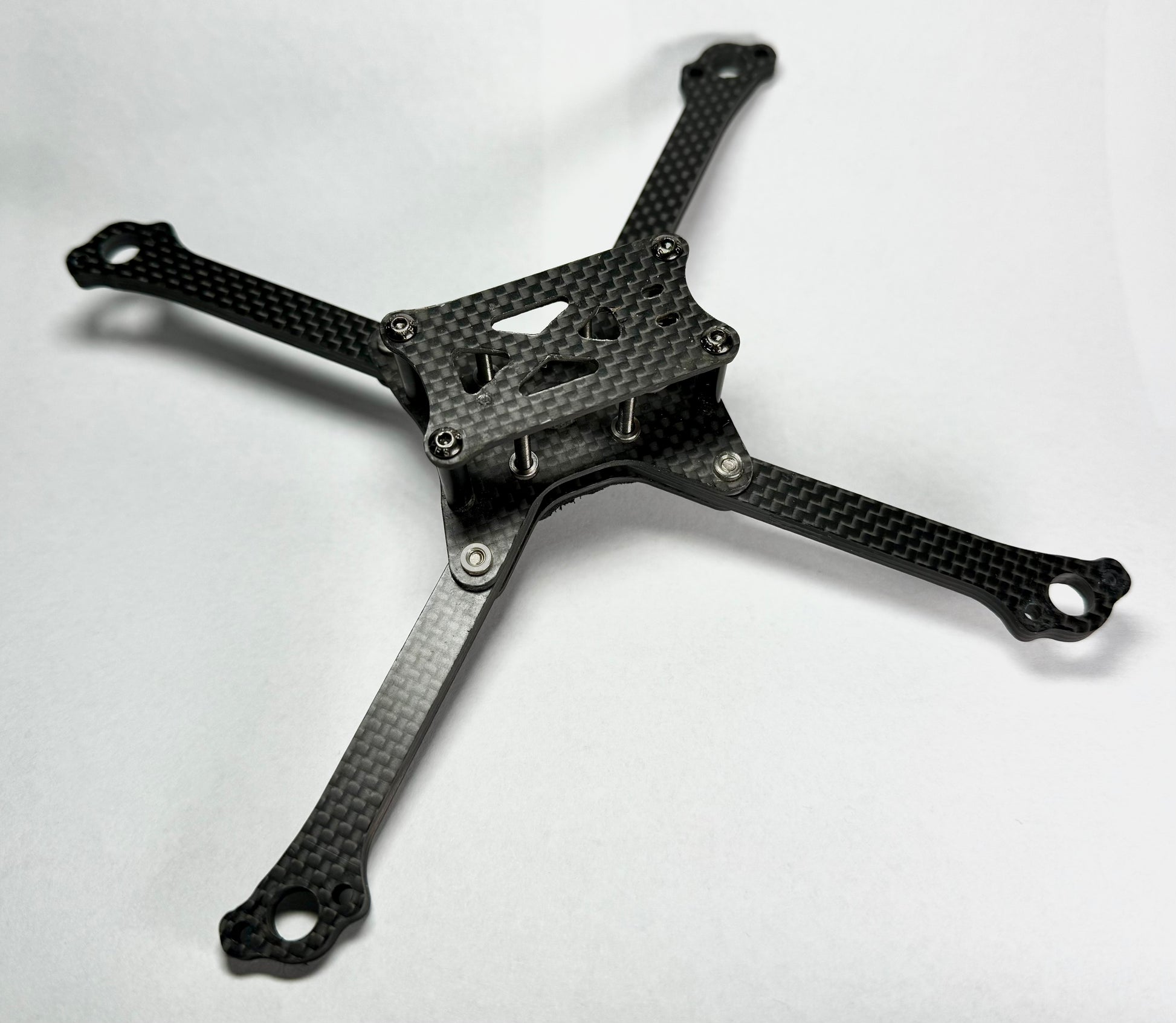

These are the first generation THIC Prototypes. Frames have all been used, however the carbon is in good condition. Note that the carbon parts used in this frame are not compatible with production THIC frames. This frame will be supplied with both 19mm and 25mm Standoffs. Thomas ran these with 19mm standoffs.

Keep in mind you are buying a used frame with incompatibility with production THICs.

Standard THIC TPU Parts will work with this frame. Stack Bolts are Dome Head



Note: TPU parts not included. They can be purchased separately in the Spares Section or STLs downloaded here for 25mm Standoff  Version or download here for the 20mm Standoff Version

The JS-3 THIC was born with two goals in mind:
-Come as close as possible to the handling performance of the JS-3 Type R
-Be more cost effective both frame and electronics durability wise

Weighing in at an astonishing 59.3g (only 3.6g more then the Type R) (20mm Standoffs, no TPU, including battery pad) and featuring a 3 bolt motor pattern, upgraded JS-3 HD Zero protecting top plate, countersunk bolts on the frames underside and lower body profile by default, the JS-THIC features world class handling, while retaining a lower price point and higher electronics protection!

Best of all the JS-3 THIC uses the same body bolt pattern as the original JS-3 & Type R, so all parts are interchangeable and cross compatible! (Note: upgrading a standard JS-3 to a THIC or Type-R body also requires the countersunk bolts, Type-R arms don't support Tiger/THIC arm braces)

Note: This is only the carbon & hardware for the frame. For proper assembly, additional TPU parts are required to complete the build. We have printing on demand available, but additionally all the parts are available on thingiverse as a free STL download.

TPU sold through BMS Racing is made for the TBS Triumph Pro U.FL, Foxeer Predator Nano & HDZero Version. If you are using a different antenna, camera or lens, please contact us first to verify compatibility before you make a purchase. We will be producing more mounts & variants as required.

Kit Includes:
Everything needed to build the frame, less the TPU Parts and Electronics.
So Battery Pad, Battery Strap is included in the kit.

Recommended parts list (HDZero):
VTX Antenna: TBS Triumph pro (U.Fl for standard TPU)
VTX: HDZero Race V3 or Foxeer HDZero VTX
Camera: HDZero 90FPS Cam with lens upgrade
FC: Foxeer F7 or H7 FC 20x20 (note if 10v bec required)
ESC: Foxeer Reaper 60A Slim
Propeller: Gemfan 51366 V3, Gemfan 5127, Gemfan 51466 V2 or HQProp BMS
Motor: T-Motor BMS Raptor V2, T-Motor F50 2150KV, VCI 2207 2100KV
Battery: Tattu R-Line V5 1400, 1550
RX: TBS Tracer, TBS Crossfire or Radiomaster ELRS

Recommended parts list (Analog):
VTX Antenna: TBS Triumph pro (U.Fl for standard TPU)
VTX: TBS Unify Pro (32 nano or nano)
Camera: Predator nano
FC: Foxeer F7 or H7 FC 20x20
ESC: Foxeer Reaper 60A Slim
Propeller: Gemfan 51366 V3, Gemfan 5127, Gemfan 51466 V2 or HQProp BMS
Motor: T-Motor BMS Raptor V2, T-Motor F50 2150KV, VCI 2207 2100KV
Battery: Tattu R-Line V5 1400, 1550
RX: TBS Tracer, TBS Crossfire or Radiomaster ELRS

Tune will be available as a preset soon, but for now just contact Thomas Bitmatta (@bmsthomas_ on instagram)




JS-3 THIC Build Diagram
