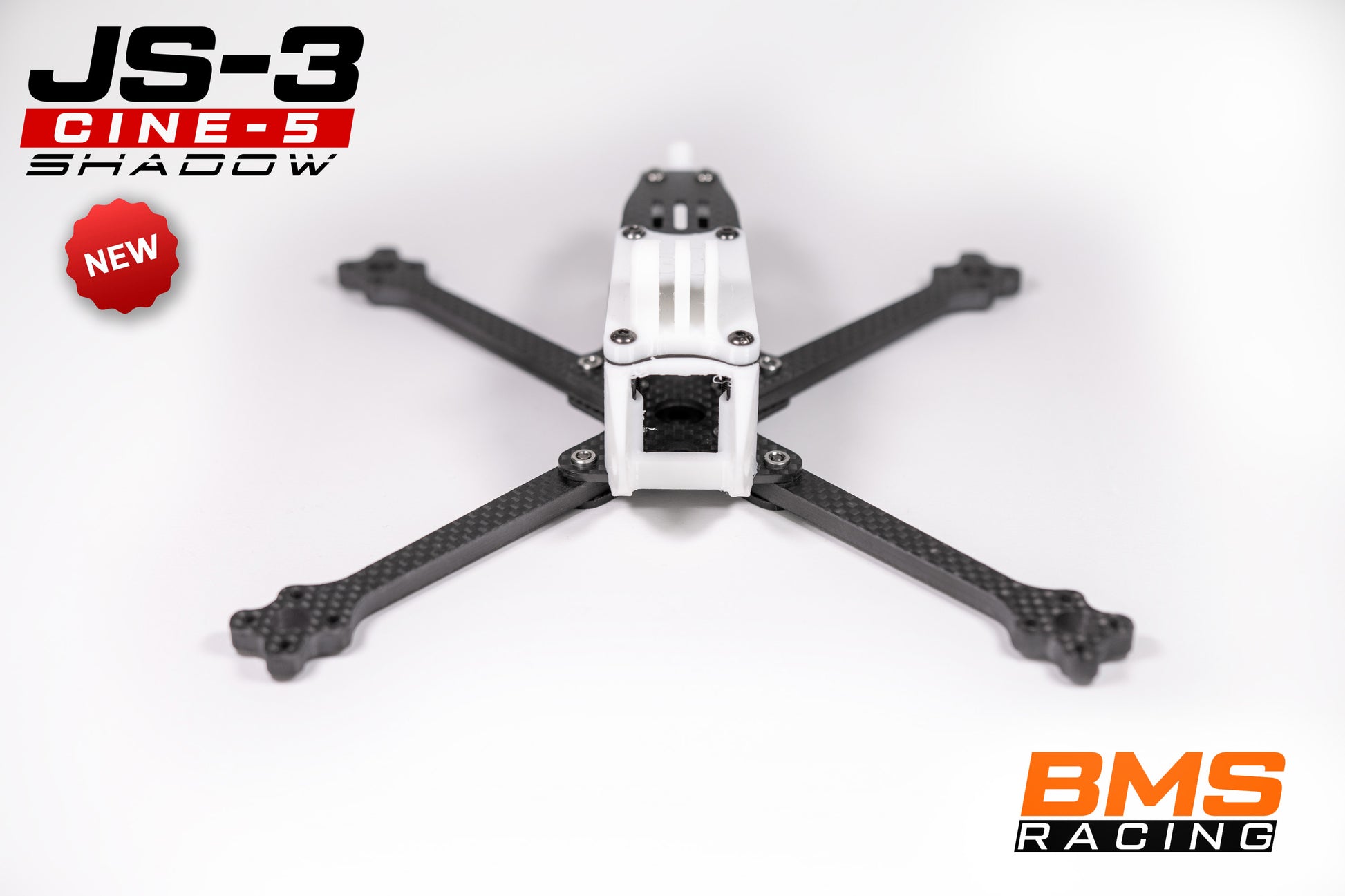

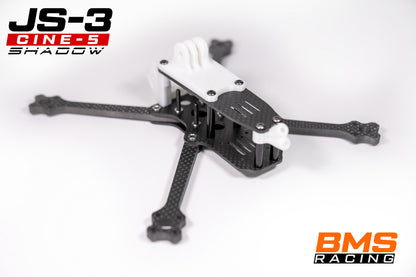

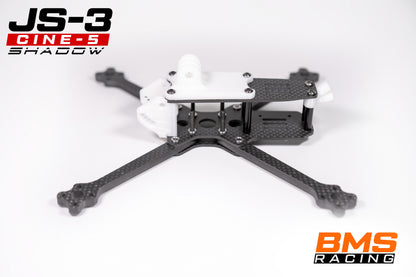

JS-3 Cine 5 Shadow - Cinematic Pursuit Drone with Race Pedigree Performance

The JS-3 Cine 5 is the intersection of world class racing pedigree & the requirements of world class pilots wielding these machines to produce the most dynamic, action packed, and high quality, cinematic content possible.

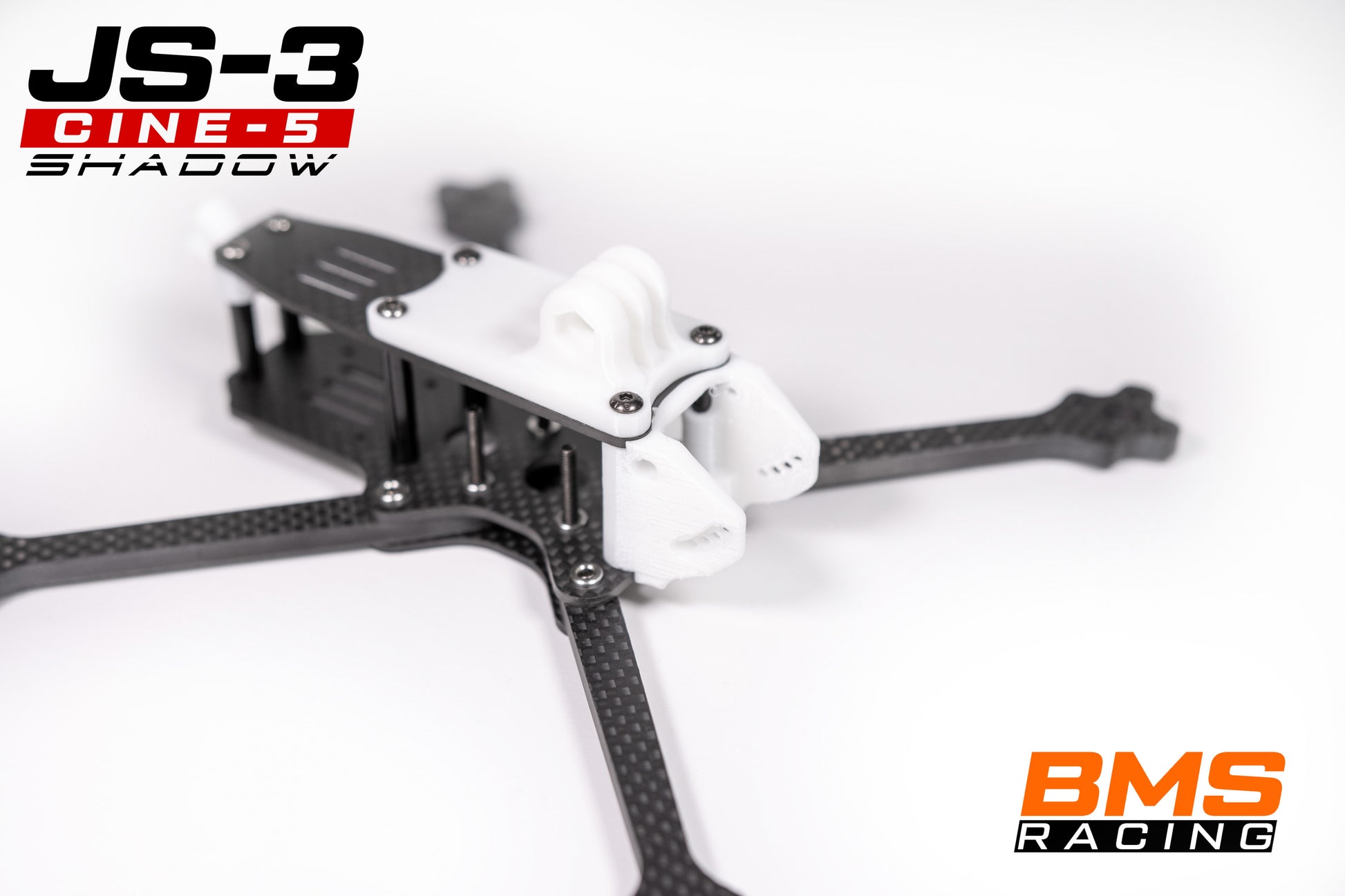

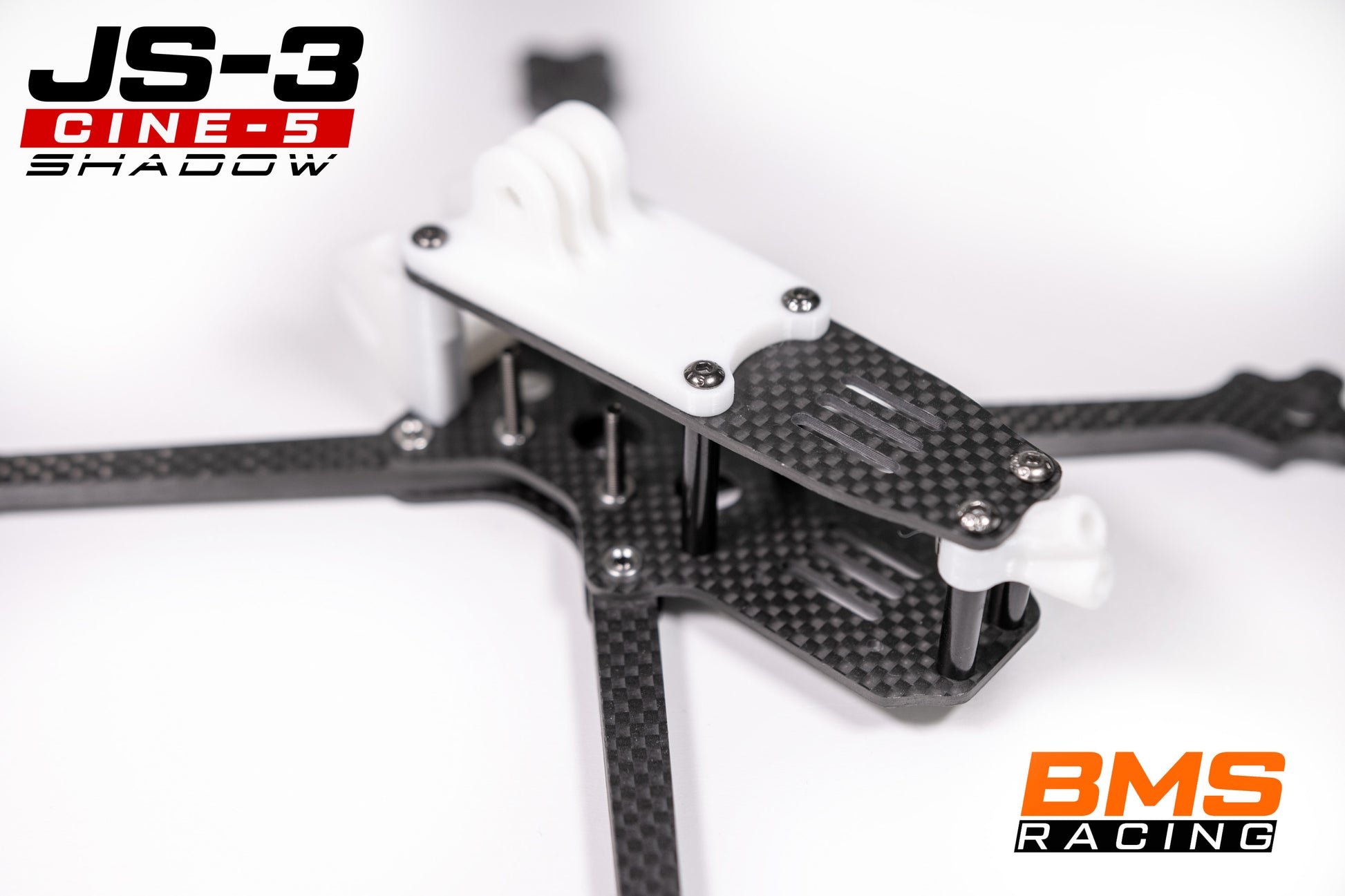

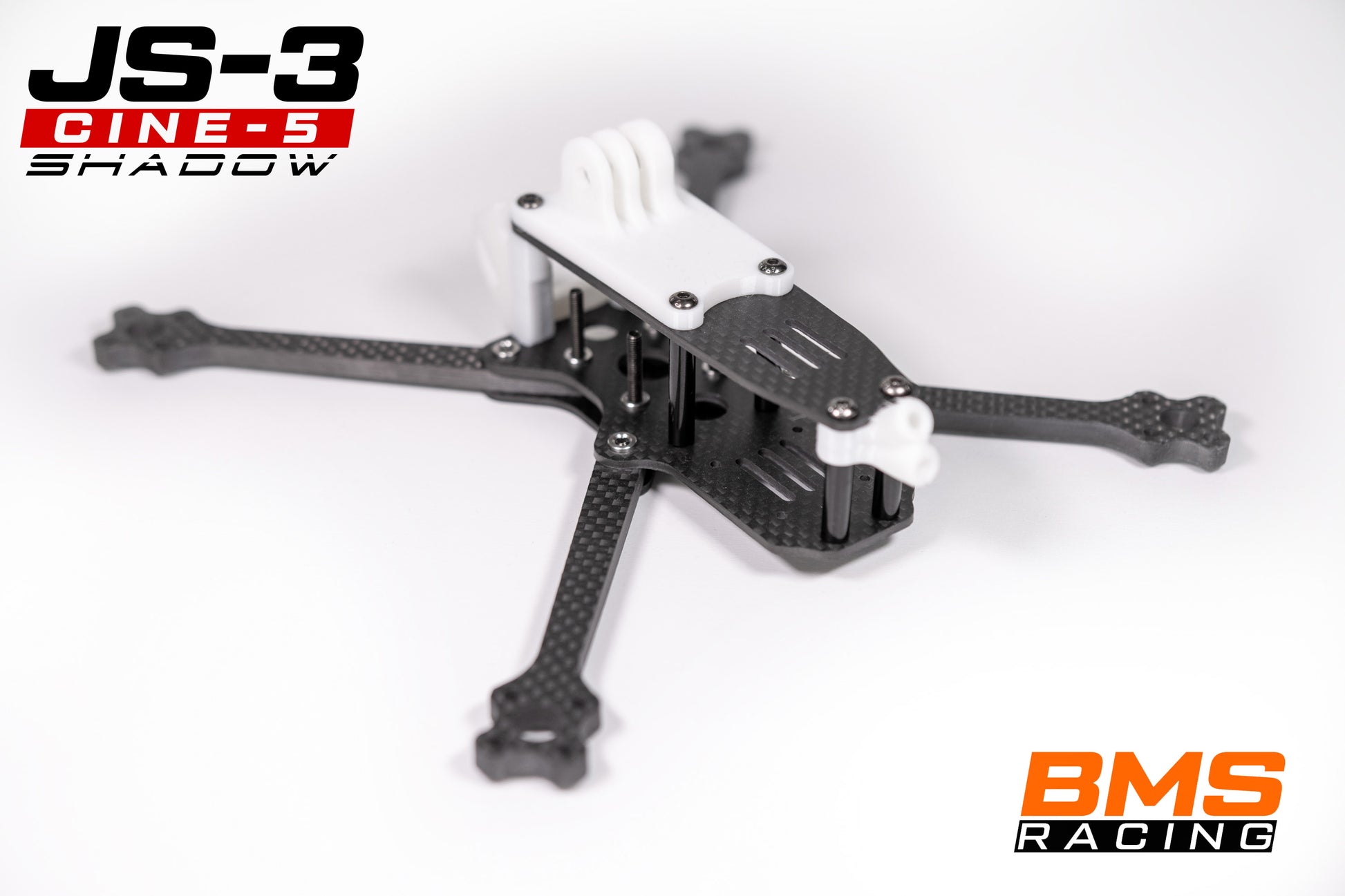

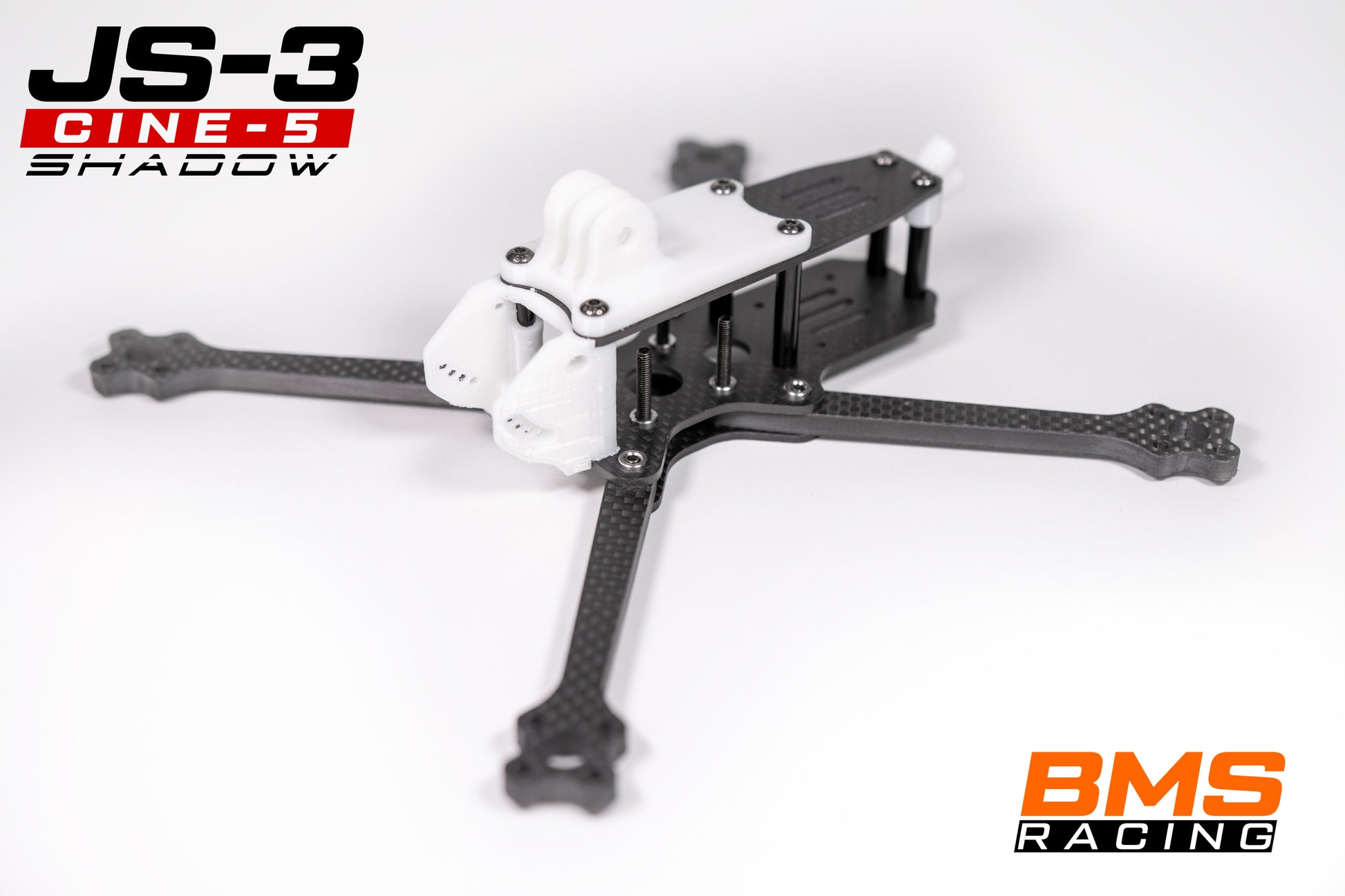

Built on the already well proven JS-3 race platform, this airframe is equipped with a dual stack body design capable of carrying the DJI 04 Air Unit Pro digital VTX systems (Can be adapted to other systems), along with a top mounted action cam for high quality video capture, such as the GoPro Mission 1 Pro etc. This allows us to have top of the line Open Class 5" top speed with centred COG & less moment of inertia than conventional 5" cinema platforms allowing for the best tuning & filming experience possible in the 120-210kph cinema space with race-like characteristics & stick feel - The Ultimate Agility!

TPU Parts
Available Here

Some special highlights to note:
Fits Foxeer 60A slim & Foxeer HDZero VTX.

Shared parts & arm bolt pattern with JS-2 - This means for a mixed fleet you can utilise the benefits of both platforms, but have a single set of arms & arm braces that are cross compatible!

Other Specs/Stats:
- Weight (Complete hardware + Battery pad, including TPU): 83.67g (UPDATE: 61.3 due to higher quality standoffs)

- Max Recorded Top speed: 210km/h with recommended parts + 51466 V2

- Motor to Motor distance of 212.3mm

- True X Configuration & matching bolt pattern & arms to JS-2.

Note About This Product: You are only purchasing the carbon & hardware for the frame. For proper assembly, additional TPU parts are required to complete the build. We have printing on demand available, but additionally all the parts are available for download.

Kit Includes:
Everything needed to build the frame, less the TPU Parts and Electronics.
So Battery Pad, Battery Strap is included in the kit.

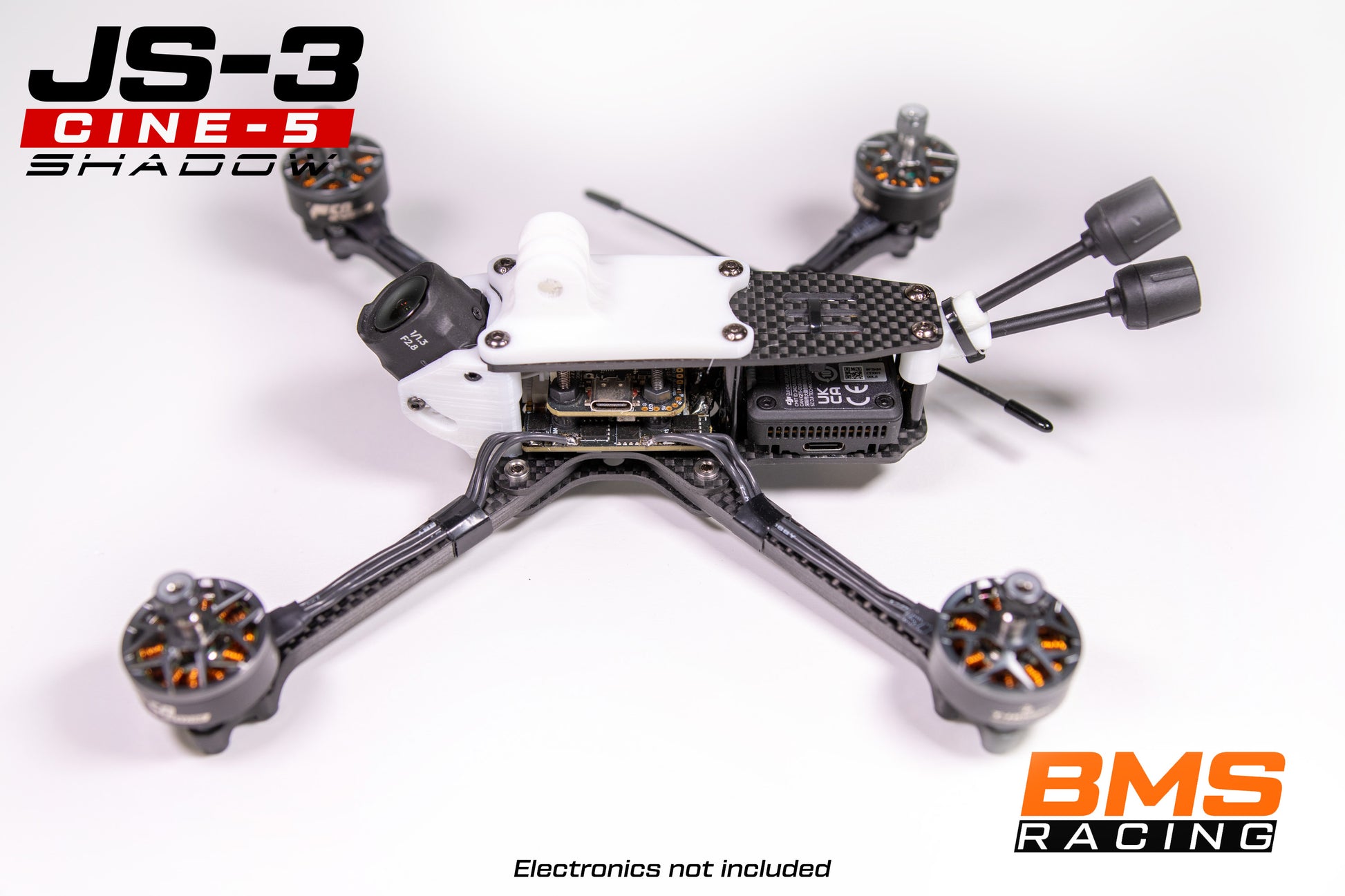

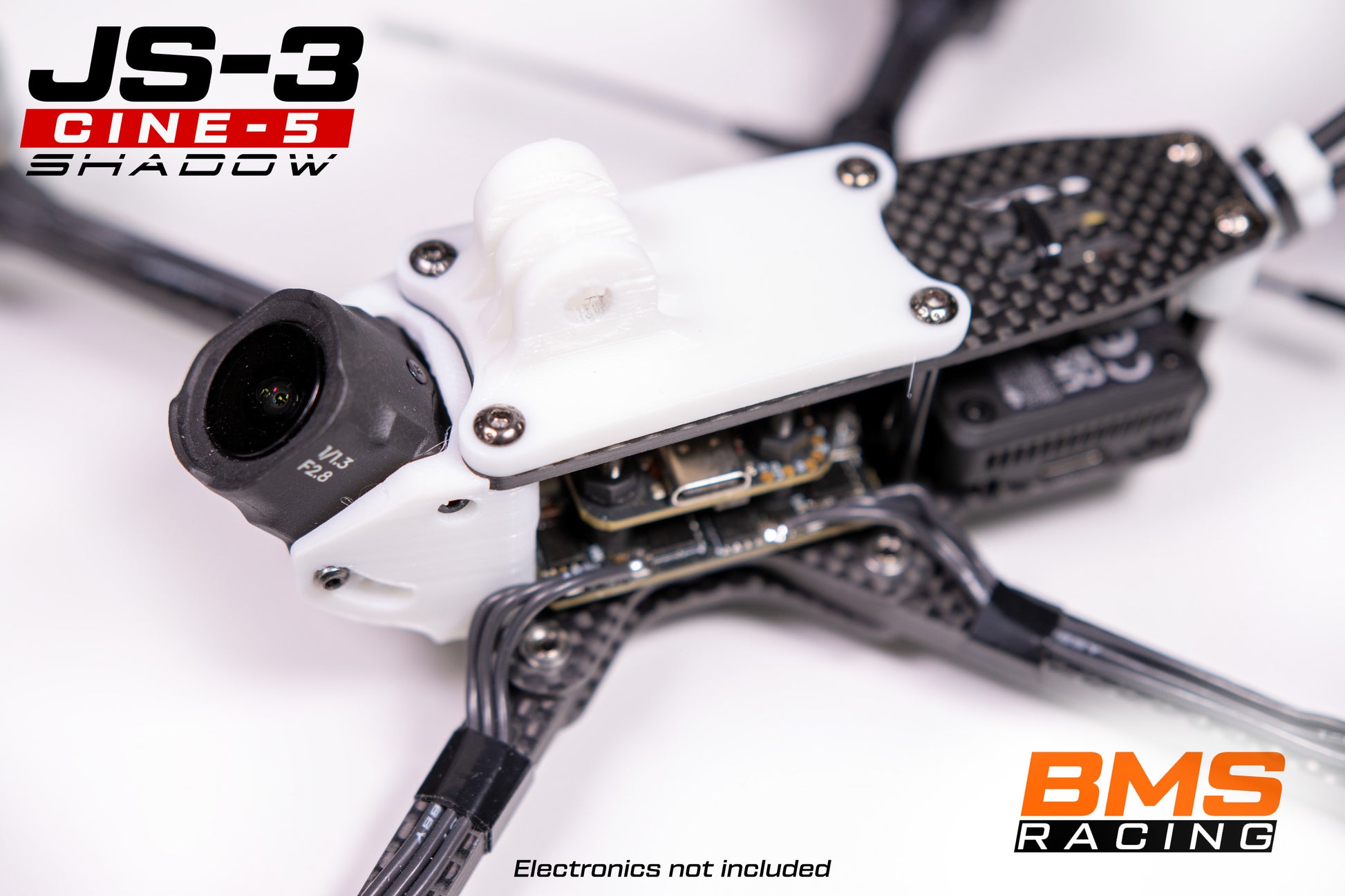

Recommended parts list (Digital):
VTX Antenna: TBS Triumph pro (U.Fl for standard TPU)
VTX: DJI 04 Air Unit
Camera: DJI 04 Air Unit Pro
FC: Foxeer F7 or H7 FC 20x20 (note if 10v bec required)
ESC: Foxeer Reaper 60A Slim
Propeller: Gemfan 51466 V2
Motor: T-Hobby F50 2150KV
Battery: Tattu R-Line V6 1600 SQ or ST
RX: TBS Crossfire or Radiomaster ELRS 900hz

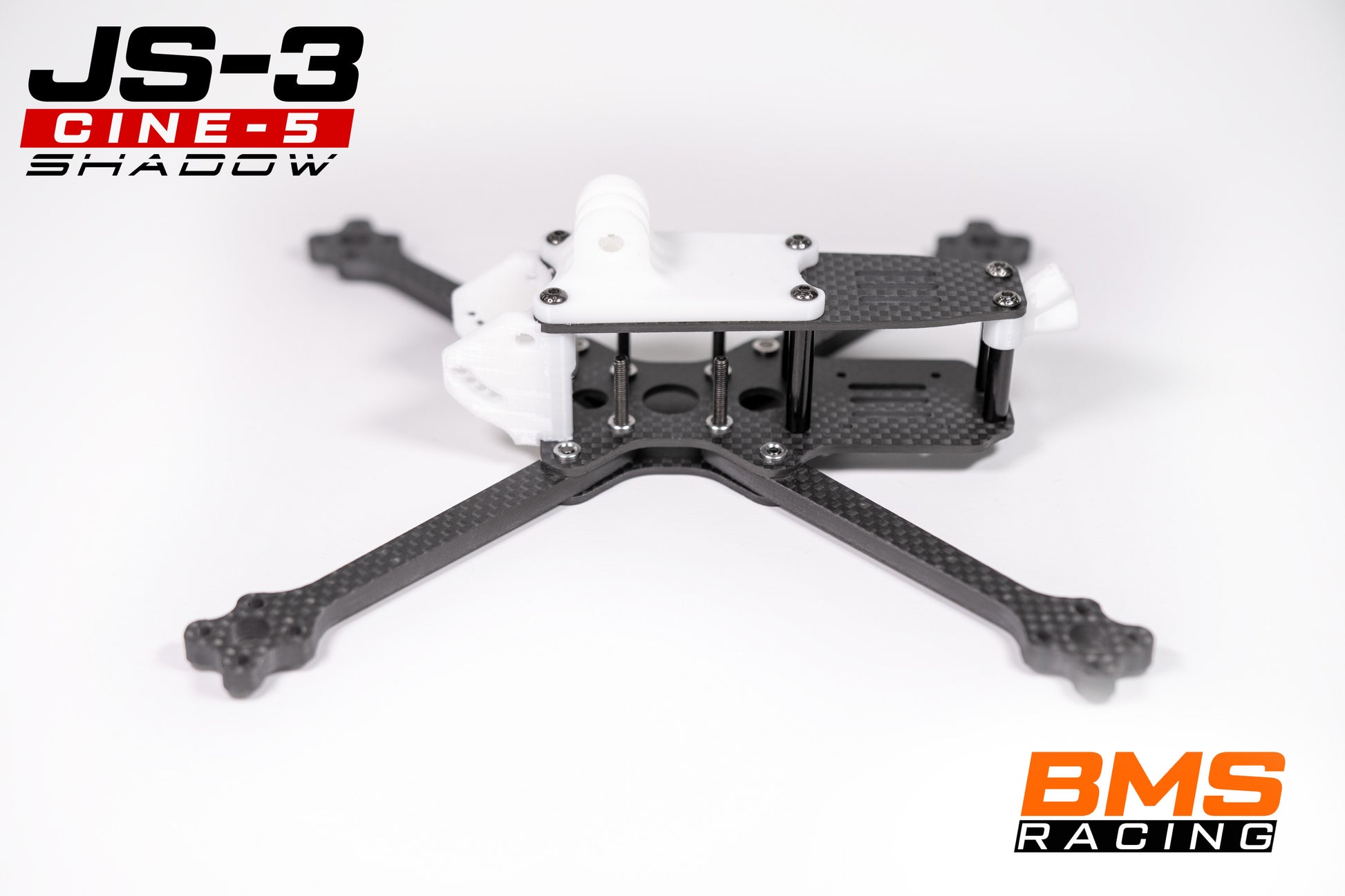

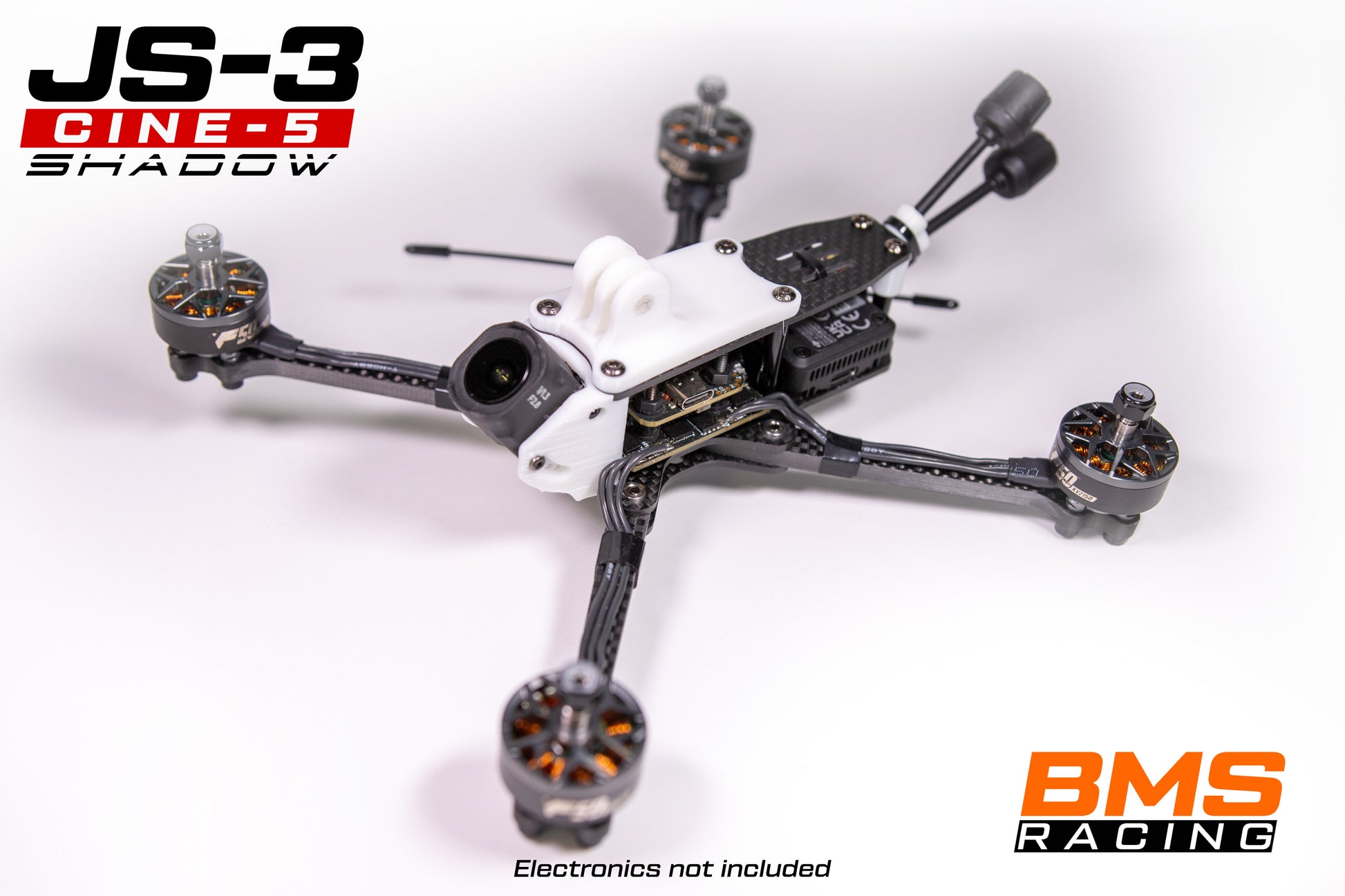

Assembled Frame:

JS-3 Cine-5 Shadow Build Diagram
